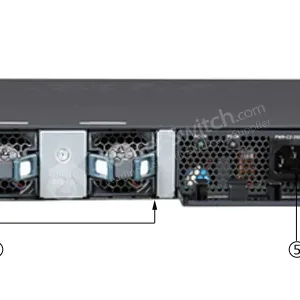

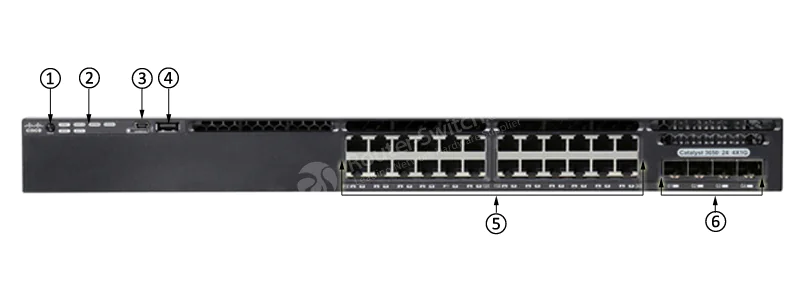

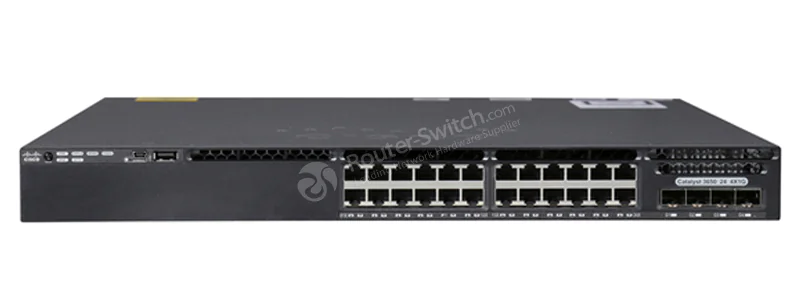

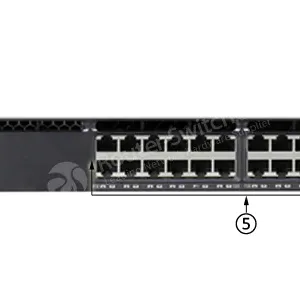

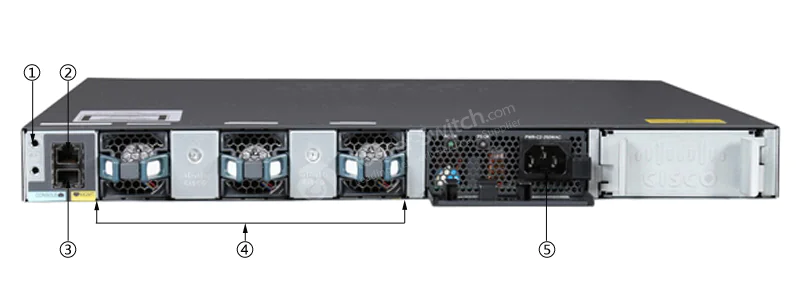

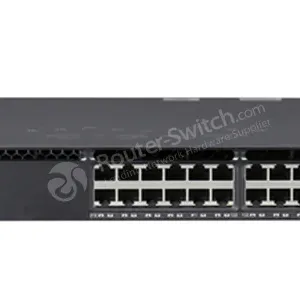

Product Overview The Cisco Catalyst 3650 Series Switch, with Cisco StackWise 160 Technology, can stack 9 switches and support up to 160 Gpbs stack bandwidth. The WS C3650 24TS E integrates with 24 Ethernet ports and 4 x 1G SFP uplink ports in IP Service feature set. Quick Specs Figure 1 shows the appearance of the Cisco C3650 24TS E switch. Table 1 shows the Quick Specs. Product Code WS C3650 24TS E Enclosure Type Rack mountable 1U Feature Set IP service Uplink Interfaces 4 x 1G SFP Ports 24 x 10/100/1000 Ethernet ports Maximum stacking number 9 Stack bandwidth 160 Gpbs Forwarding Bandwidth 41.66Mpps Switching Capacity 88 Gbps RAM 4 G Flash Memory 2G Number of AP per switch/stack 50 Number of wireless clients per switch/stack 1000 Dimensions 44.5 cm x 44.5 cm x 4.4 cm Package Weight 17.49 Kg Product Details Figure 2 shows the front panel of the Cisco C3650 24TS E switch. Note： Mode button USB Type A storage port Status LEDs 24 x 10/100/1000 Ports USB mini Type B (console) port Uplink ports Figure 3 shows the back panel of the Cisco C3650 24TS E switch. Note： Ground connector CONSOLE (RJ 45 console port) MGMT (RJ 45 10/100/1000 management port) Fan module Power supply modules Figure 4 shows the StackWise 160 Kit. IP service feature set can only stack with other 3650 series in IP service feature set, in order to stack with LAN/IP base feature set, IP service feature set need to configure in LAN/IP base feature set (Stack module purchase separately). The Модули, лицензии и аксессуары Модели Описание C3650 STACK KIT Запасной модуль стека Cisco Catalyst 3650 PWR C2 250WAC 250 Вт переменного тока Конфигурация 2 Вторичный источник питания Консольный кабель CAB CONSOLE RJ45 длиной 6 футов с RJ45 и DB9F Консольный кабель CAB CONSOLE USB длиной 6 футов с USB типа A и mini B Сравнение с аналогичными изделиями C3650 24TS E и WS C3650 24TS S. Модели WS C3650 24TS E WS C3650 24TS S Набор функций IP сервисы IP Base Uplink интерфейсы 4 порта восходящего канала SFP 1G 4 порта восходящего канала SFP 1G Порты 24 порта Ethernet 10/100/1000 24 порта Ethernet 10/100/1000
